Standard Digital tool Pre-setter  PDF Download

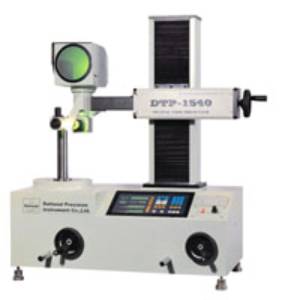

TPM series digital tool presetter integrates high quality optics, mechanism and electronics design. The instrument is widely used to measure the precise coordinate position of the tools utilized in the digital control machine tool, CNC machining center and flexible manufacturing system. It can also inspect the angle, round corners, pit and so on.

Specifications:


Measuring range

Diameter (X)¡GØ300 mm Height (Z)¡G 30 ~ 380mm

Instrument resolution

X-axis¡G0.001 mm
Z-axis¡G 0.001 mm

Taper of tool holder

7 : 24 (standard)

Taper shank No.

Standard¡G BT40
Option¡G BT30¡ABT50

Screen Diameter

Ø 120 mm

Magnification of lens

0.5X

Total magnification

20X (17" LCD Monitor)

Instrument dimension

940 x 520 x 870 mm

Illumination

Reflective light source 24V/20W

Power

Transmission LED light source (light intensity adjustable)

Weight

AC110V/220V       50Hz/60Hz

Instrument dimension

90 kg
